Pedestrian Gangway

About Pedestrian Gangway & Walkways

TPA’s Aluminium Pedestrian Gangways, available up to 6m in length with foldable and removable handrails.

TPA’s range of aluminium pedestrian walkways are designed for pedestrian use across excavations and ditches. They have a maximum loading capacity of 400kgs/m2 and range from 1660mm - 6060mm long.

The handrails on the sides of the walkways are 1000mm high when deployed, and fold in on themselves for ease of transportation. They can also be removed completely. The footstops are 200mm high.

Please note that the ramp should never be used at more than a maximum gradient of 5%. On both sides of the ramp there must also be a minimum rest of 330mm.

To find out more about pedestrian access solutions, Call 0870 240 2381


Benefits & Features:

  • Rest on connections - simply put ramp in place and start using it
  • Foldable edges to reduce ramp size during transportation
  • 200mm high footstops
  • Ergonomic handrails 1m high

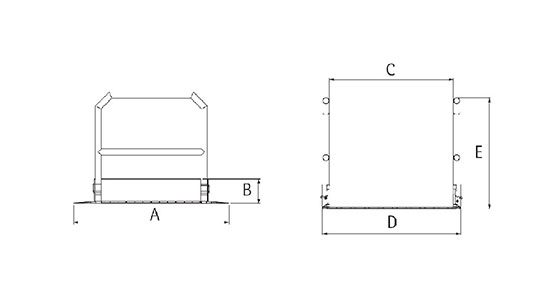

Loading Capacity (kg/m2)

(A)

Length (mm)

(B)

Footsteps Height (mm)

Max Weight Excavation (mm)

(C)

Internal Width (mm)

(D)

External Width (mm)

(E)

Handrails Height (mm)

Weight Per Piece (Kg)

400 1660 200 1000 1000 1120 1000 43
400 2260 200 1600 1000 1120 1000 56
400 2660 200 2000 1000 1120 1000 64
400 3260 200 2600 1000 1120 1000 77
400 4060 200 3400 1000 1120 1000 94
400 5060 200 4400 1000 1120 1000 115
400 6060 200 5400 1000 1120 1000 136
